ALTERNATORS & ACCESSORIES

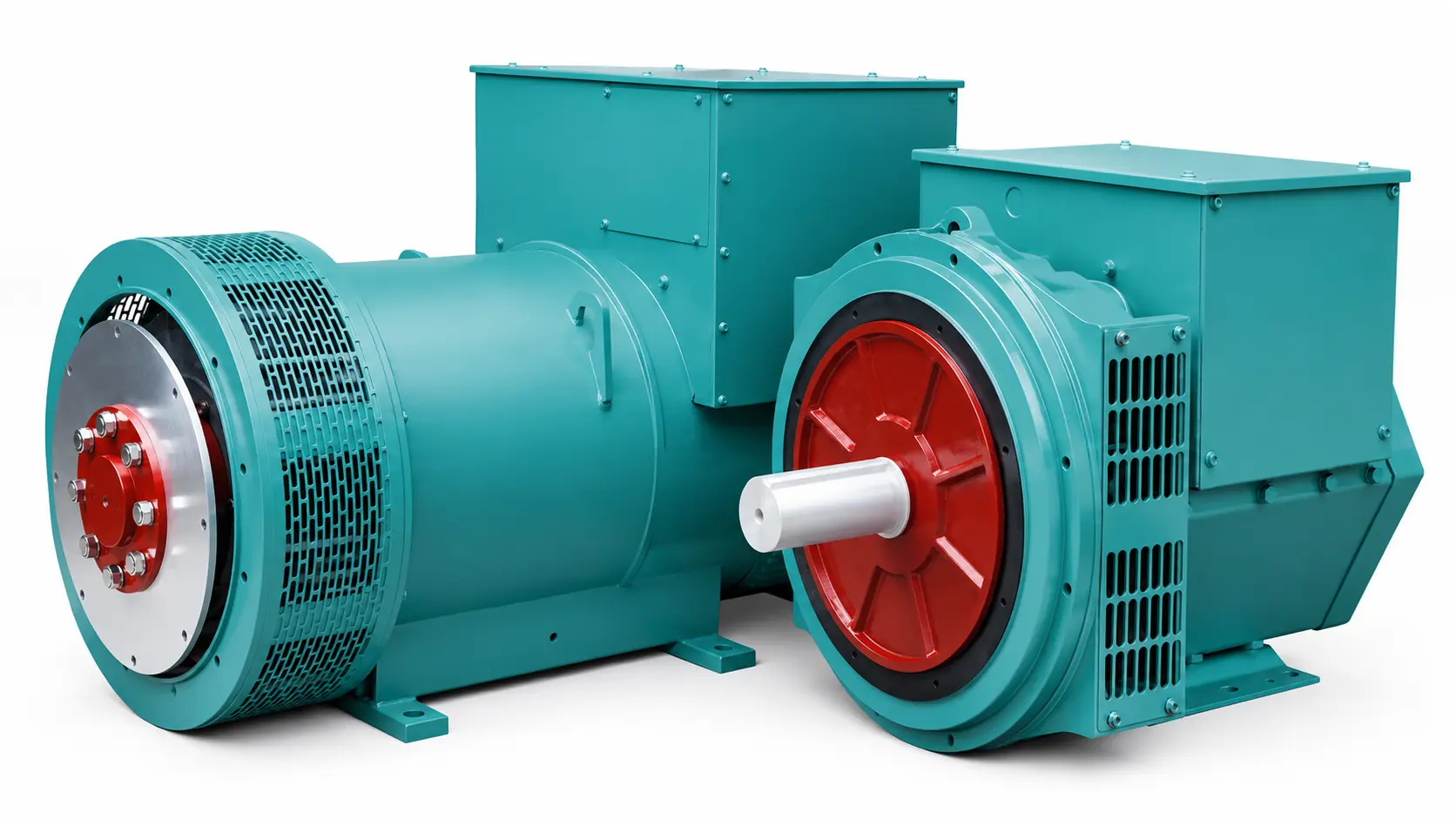

Alternators
Brushless synchronous alternators for generator manufacturing, OEM integration and replacement projects.
✓ 6.8–680 kW✓ 50 Hz / 60 Hz✓ Single / Double Bearing
Request A Quote
TECHNICAL PARAMETERS
Confirmed Model Specifications
| Parameter | ANT164A | ANT164B | ANT164C | ANT164D |
|---|---|---|---|---|
| 50 Hz Rated Output (kW) | 6.8 | 8.8 | 10.8 | 12.8 |
| 60 Hz Rated Output (kW) | 8 | 10 | 12.8 | 16 |
| Standard Core Length | L=65 | L=80 | L=100 | L=115 |
| Standard SAE No. | 4#7.5 | 4#7.5 | 4#7.5 | 4#7.5 |
| Single Bearing N.W. (kg) | 85 | 90 | 96 | 99 |
| Single Bearing G.W. (kg) | 95 | 100 | 106 | 109 |
| Single Bearing Package Size (cm) | 53×55×59 | 53×55×59 | 53×55×59 | 53×55×59 |
| Double Bearing N.W. (kg) | 91 | 98 | 106 | 112 |
| Double Bearing G.W. (kg) | 101 | 108 | 116 | 122 |
| Double Bearing Package Size (cm) | 62×55×59 | 62×55×59 | 62×55×59 | 62×55×59 |
| Parameter | ANT184ES | ANT184E | ANT184F | ANT184G | ANT184H | ANT184J |
|---|---|---|---|---|---|---|
| 50 Hz Rated Output (kW) | 15 | 18 | 22 | 25 | 30 | 32 |
| 60 Hz Rated Output (kW) | 18 | 22 | 26 | 30 | 36 | 38 |
| Standard Core Length | L=130 | L=150 | L=190 | L=230 | L=255 | L=285 |
| Standard SAE No. | 4#7.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 |
| Single Bearing N.W. (kg) | 116 | 120 | 150 | 156 | 216 | 226 |
| Single Bearing G.W. (kg) | 126 | 130 | 160 | 166 | 226 | 236 |
| Single Bearing Package Size (cm) | 58×55×59 | 58×55×59 | 67×55×59 | 67×55×59 | 74×55×59 | 74×55×59 |
| Double Bearing N.W. (kg) | 128 | 131 | 154 | 170 | 220 | 230 |
| Double Bearing G.W. (kg) | 138 | 141 | 164 | 180 | 230 | 240 |
| Double Bearing Package Size (cm) | 67×55×59 | 67×55×59 | 74×55×59 | 74×55×59 | 80×55×59 | 80×55×59 |
| Parameter | ANT224C | ANT224D | ANT224E | ANT224F | ANT224G |
|---|---|---|---|---|---|
| 50 Hz Rated Output (kW) | 34 | 40 | 48 | 58 | 68 |
| 60 Hz Rated Output (kW) | 40 | 48 | 58 | 70 | 80 |
| Standard Core Length | L=134 | L=160 | L=186 | L=248 | L=309 |
| Standard SAE No. | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 |
| Single Bearing N.W. (kg) | 235 | 250 | 270 | 310 | 350 |
| Single Bearing G.W. (kg) | 255 | 270 | 290 | 330 | 370 |
| Single Bearing Package Size (cm) | 82×55×81 | 82×55×81 | 91×55×81 | 91×55×81 | 96×55×81 |
| Double Bearing N.W. (kg) | 250 | 270 | 290 | 320 | 360 |
| Double Bearing G.W. (kg) | 275 | 295 | 315 | 345 | 385 |
| Double Bearing Package Size (cm) | 82×55×81 | 82×55×81 | 91×55×81 | 91×55×81 | 96×55×81 |
| Parameter | ANT274C | ANT274D | ANT274E | ANT274F | ANT274G | ANT274H | ANT274J | ANT274K |
|---|---|---|---|---|---|---|---|---|
| 50 Hz Rated Output (kW) | 80 | 96 | 112 | 125 | 144 | 160 | 180 | 200 |
| 60 Hz Rated Output (kW) | 96 | 115 | 135 | 150 | 180 | 195 | 220 | 240 |
| Standard Core Length | L=165 | L=205 | L=230 | L=285 | L=340 | L=375 | L=410 | L=450 |
| Standard SAE No. | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 | 3#11.5 |
| Single Bearing N.W. (kg) | 385 | 405 | 455 | 500 | 550 | 600 | 720 | 740 |
| Single Bearing G.W. (kg) | 415 | 435 | 485 | 530 | 580 | 630 | 760 | 780 |
| Single Bearing Package Size (cm) | 91×65×87 | 91×65×87 | 100×65×87 | 100×65×87 | 105×65×87 | 110×65×87 | 115×70×90 | 115×70×90 |
| Double Bearing N.W. (kg) | 395 | 420 | 470 | 510 | 560 | 610 | — | — |
| Double Bearing G.W. (kg) | 435 | 460 | 510 | 550 | 600 | 650 | — | — |
| Double Bearing Package Size (cm) | 93×65×87 | 93×65×87 | 105×65×87 | 105×65×87 | 110×65×87 | 114×65×87 | — | — |
| Parameter | ANT444C | ANT444D | ANT444ES | ANT444E | ANT444FS | ANT444F |
|---|---|---|---|---|---|---|
| 50 Hz Rated Output (kW) | 200 | 240 | 260 | 280 | 300 | 320 |
| 60 Hz Rated Output (kW) | 240 | 300 | 320 | 340 | 360 | 385 |
| Standard Core Length | L=275 | L=340 | L=410 | L=420 | L=500 | L=500 |
| Standard SAE No. | 1#14 | 1#14 | 1#14 | 1#14 | 1#14 | 1#14 |
| Single Bearing N.W. (kg) | 850.5 | 915.5 | 995.5 | 995.5 | 1123.5 | 1123.5 |
| Single Bearing G.W. (kg) | 910 | 975 | 1055 | 1055 | 1183 | 1183 |
| Single Bearing Package Size (cm) | 130×77×99 | 130×77×99 | 130×77×99 | 130×77×99 | 139×77×99 | 139×77×99 |
| Parameter | ANT544C | ANT544D | ANT544E | ANT544F |
|---|---|---|---|---|
| 50 Hz Rated Output (kW) | 360 | 400 | 480 | 550 |
| 60 Hz Rated Output (kW) | 440 | 480 | 600 | 680 |
| Standard Core Length | L=350 | L=430 | L=500 | L=575 |
| Standard SAE No. | 0#14 | 0#14 | 0#14 | 0#14 |
| Single Bearing N.W. (kg) | 1250 | 1358 | 1498 | 1653 |
| Single Bearing G.W. (kg) | 1350 | 1450 | 1598 | 1753 |
| Single Bearing Package Size (cm) | 146×84×100 | 146×84×100 | 146×84×100 | 154×84×100 |
KEY FEATURES
Product Advantages
Single or Double Bearing Options
50 Hz and 60 Hz Output
Wide 6.8–680 kW Range
OEM Generator Integration
APPLICATIONS
Where This Product Is Used
Generator Manufacturing
OEM & CKD Projects
Industrial Power Systems
Alternator Replacement
Electrical Integration
FAQ
Common Questions
What information is needed for product selection?+
Please provide the application, required output, operating conditions, quantity and destination market.
Can ANT provide OEM support?+
OEM branding and project support can be discussed after the technical configuration is confirmed.
Is the product tested before shipment?+
Applicable inspection and functional testing are completed before shipment.
How can I obtain the final datasheet?+
Send an inquiry with the product name and required model. Our team will provide the confirmed technical document.
